RMS - New England Highway

• Client
  Roads and Maritime Services

• Location
  Murrurundi in New South Wales
• The total area of work required to be stabilised
  Site 1 New England HWY at Liverpool Range 11,500m2
  Site 2 New England HWY at Kankool 29,300m2

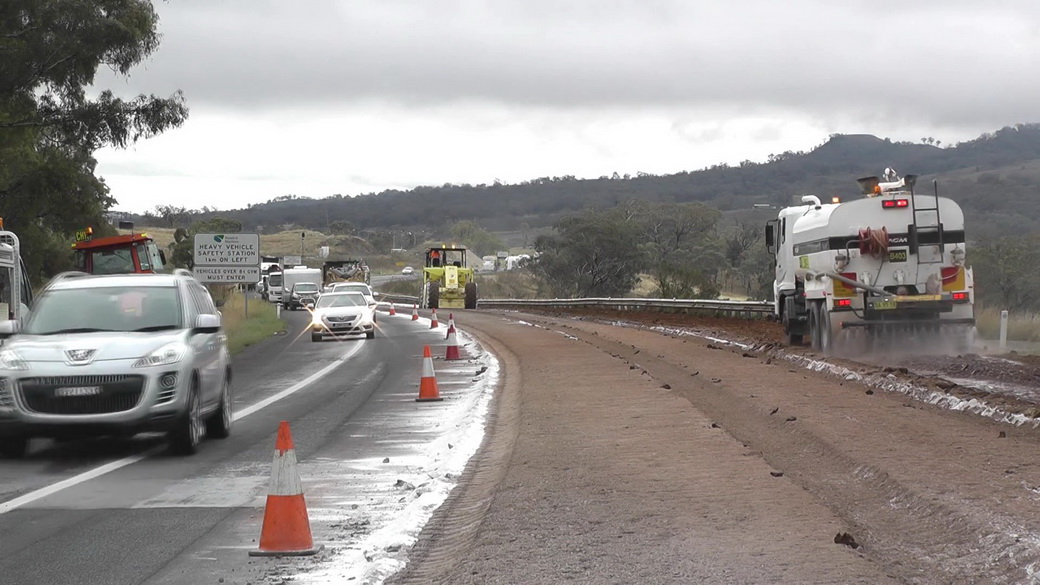

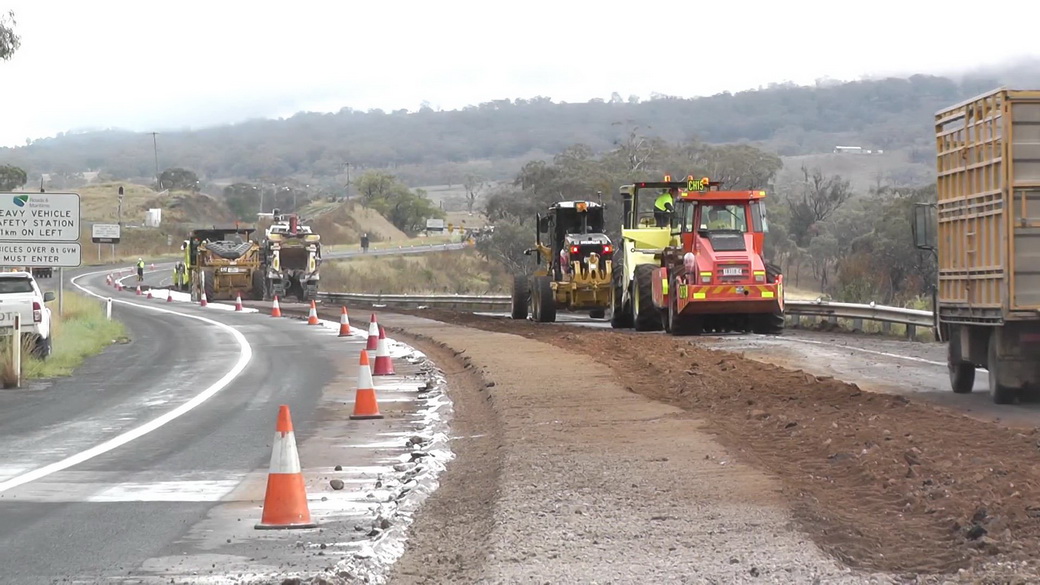

Pavement Rehabilitation of two sections of the New England Highway near Murrurundi in New South Wales. Full service in-situ stabilisation of existing pavement material including pre-milling, spreading and incorporating additive, compaction and trimming to provide a heavily bound pavement of UCS > 4MPa, meeting the ride requirements of RMS R75.

SCOPE OF WORKS:

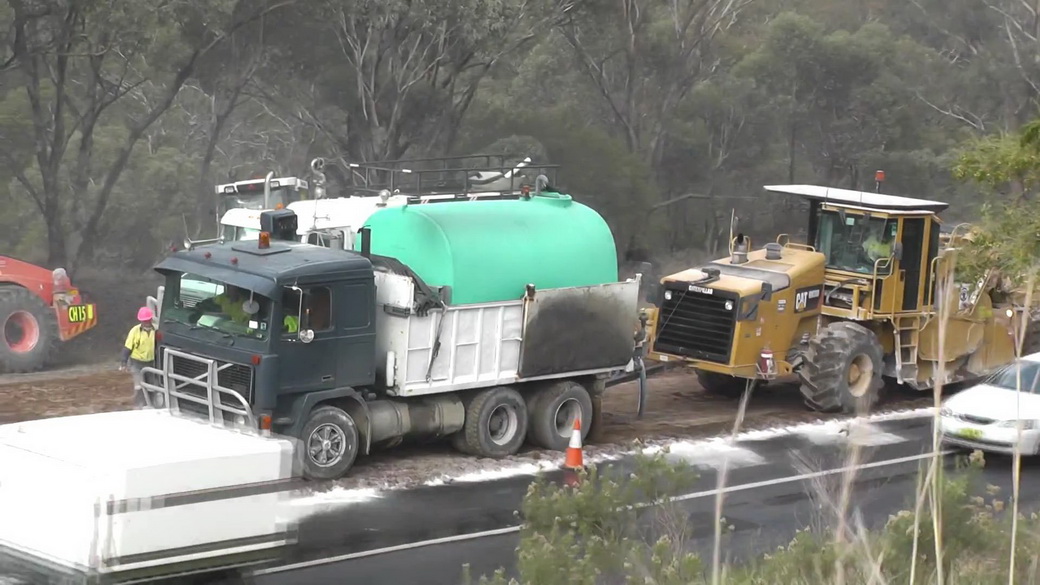

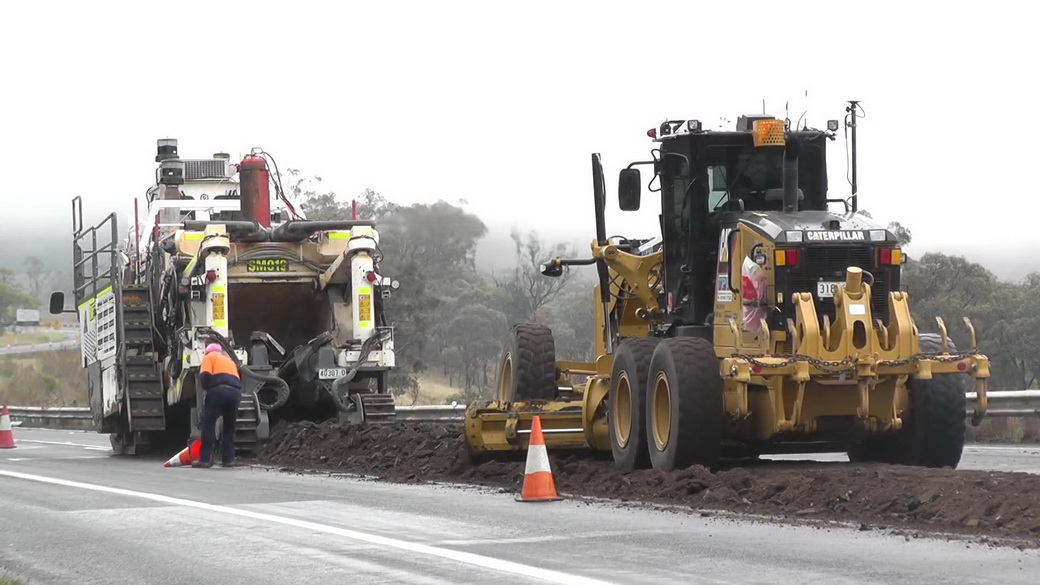

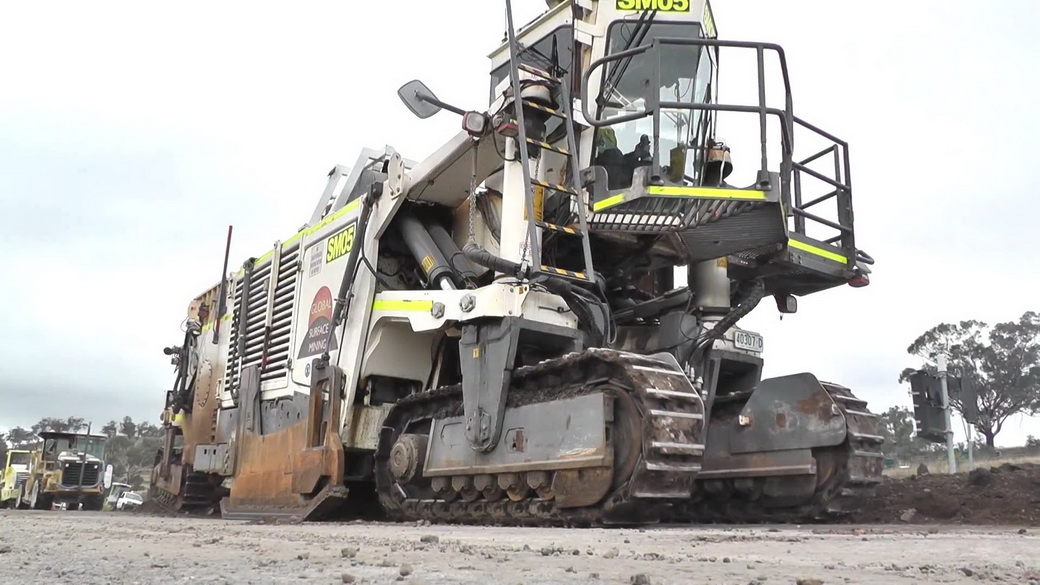

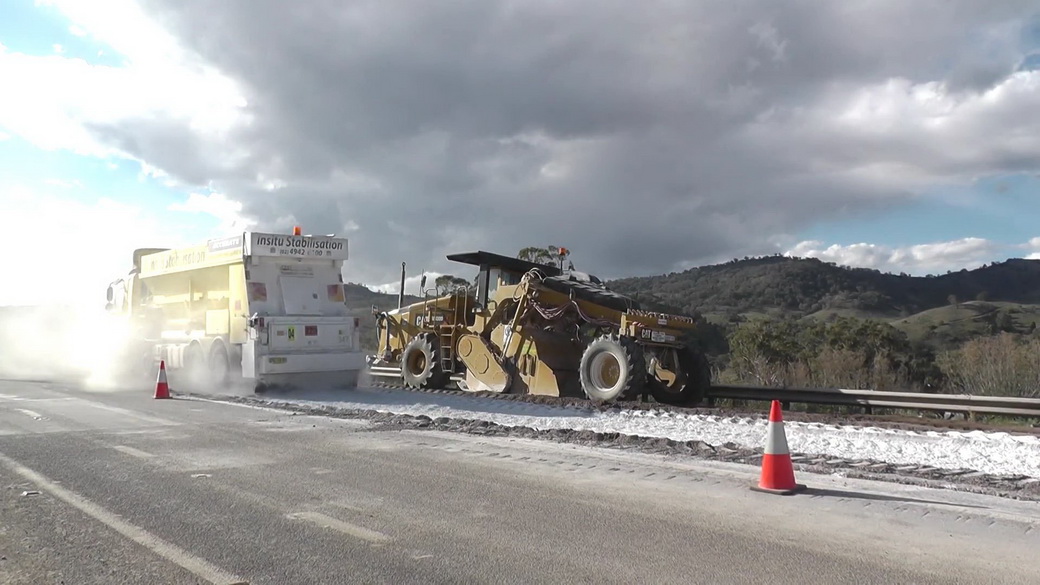

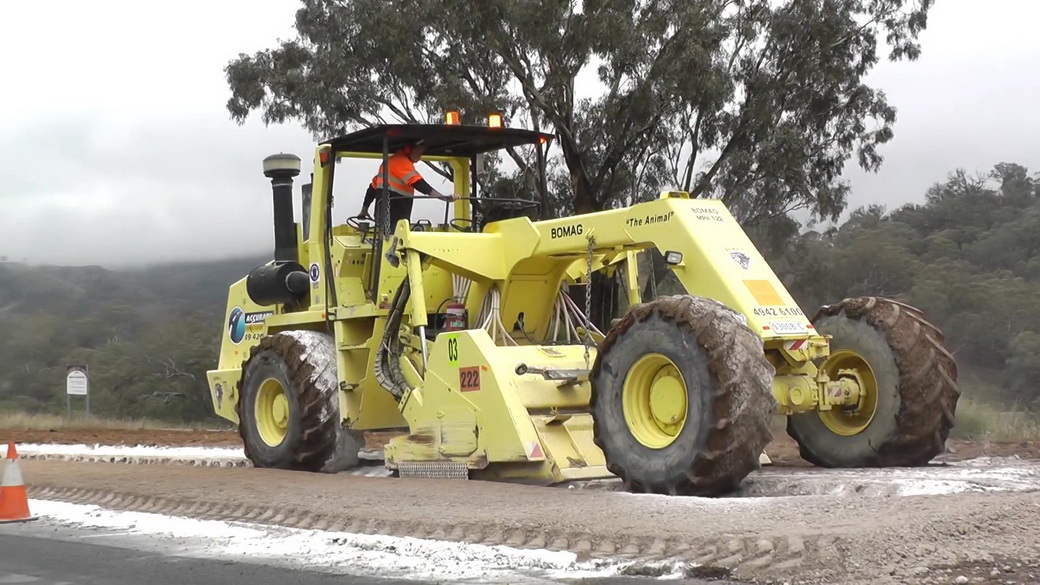

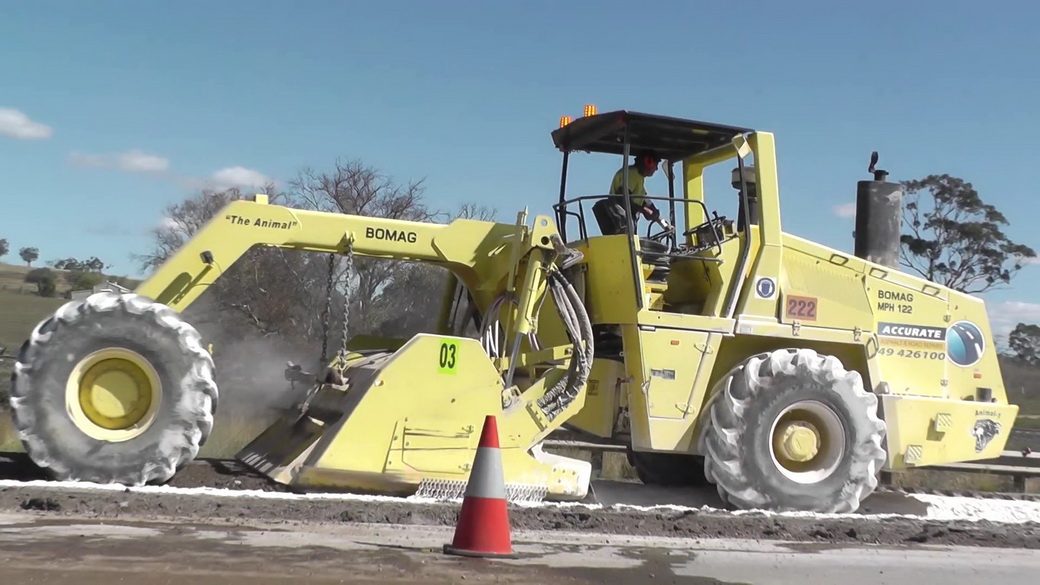

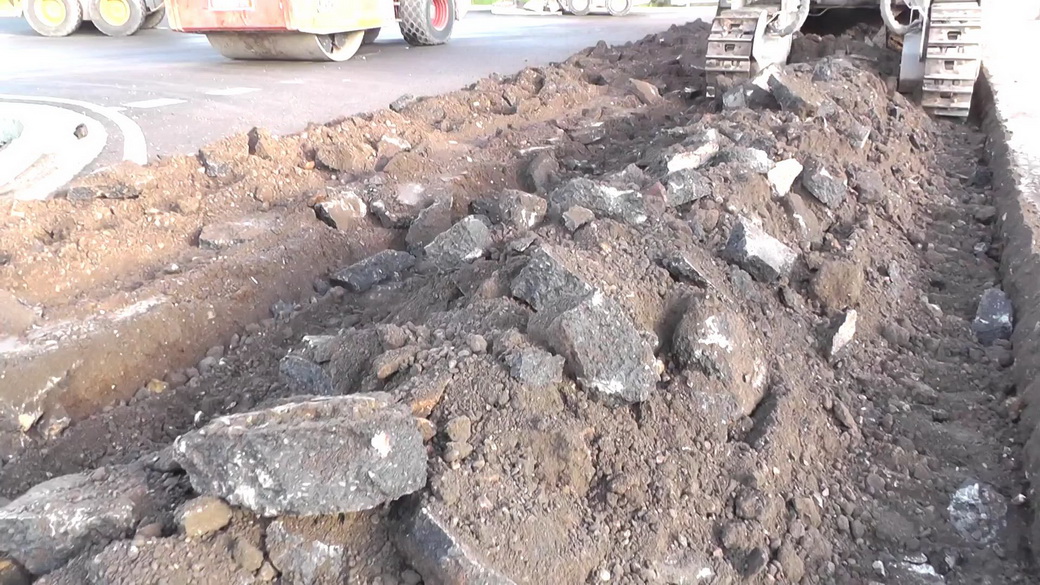

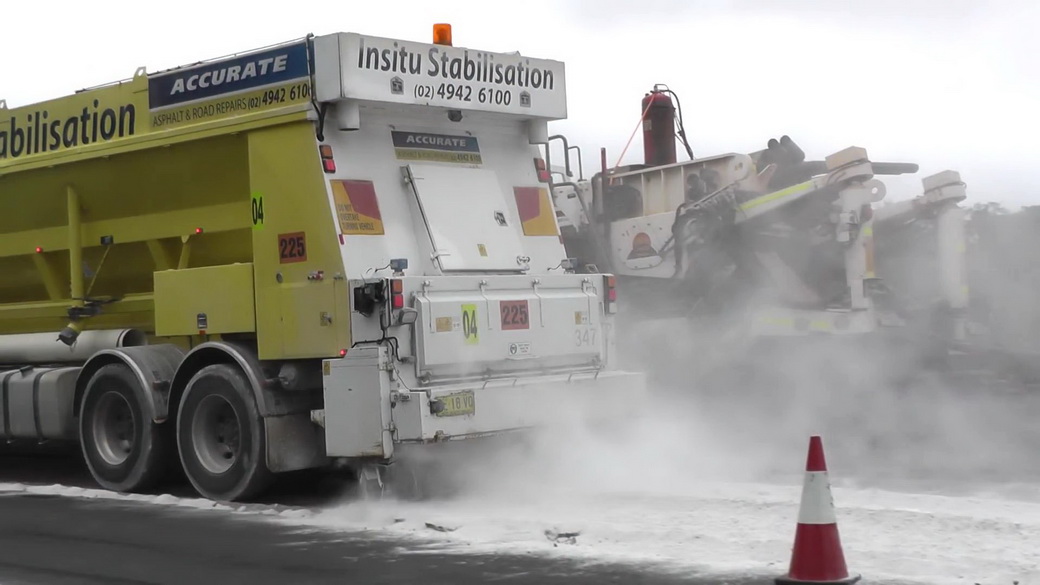

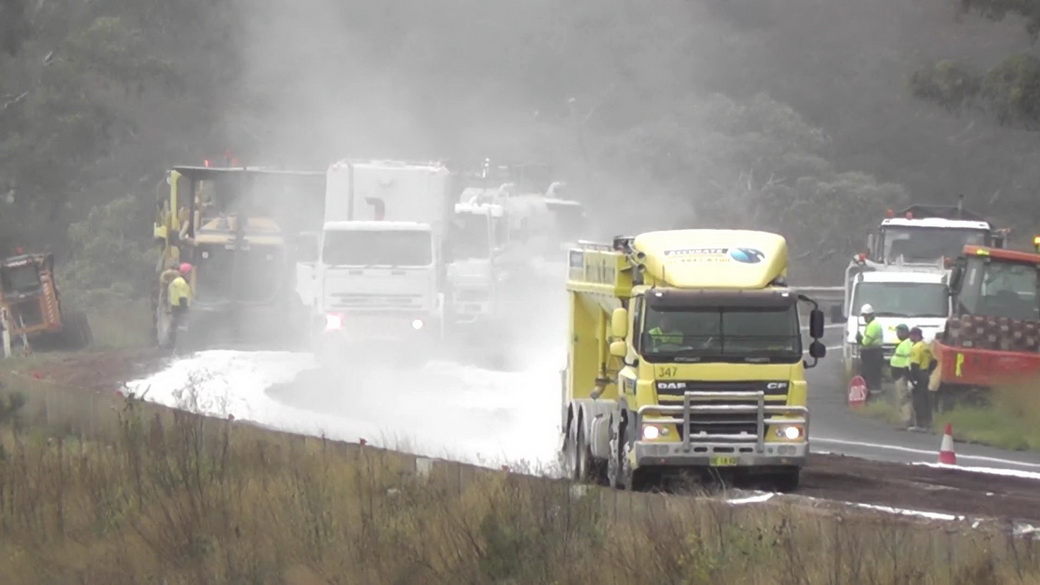

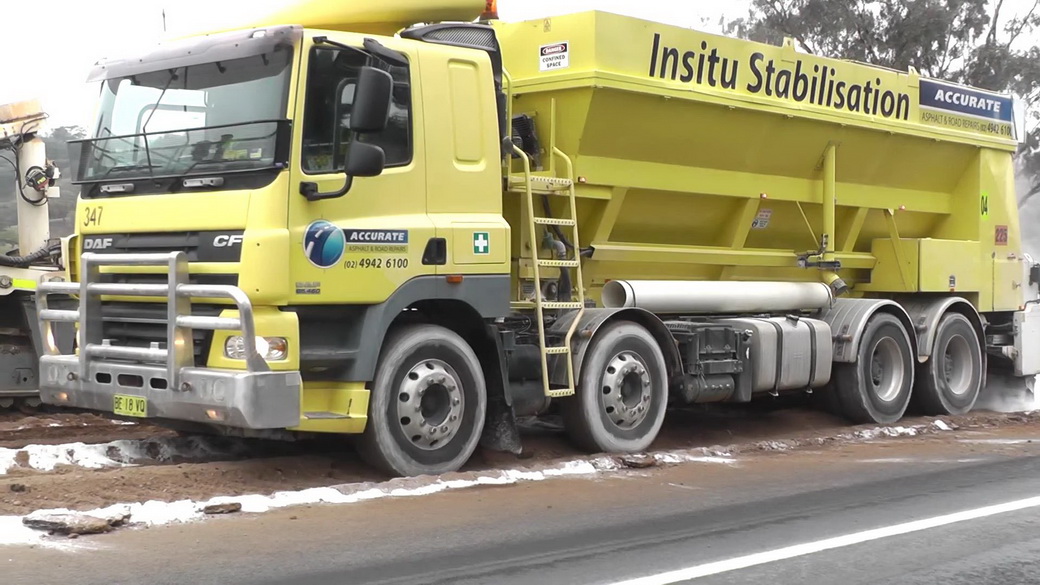

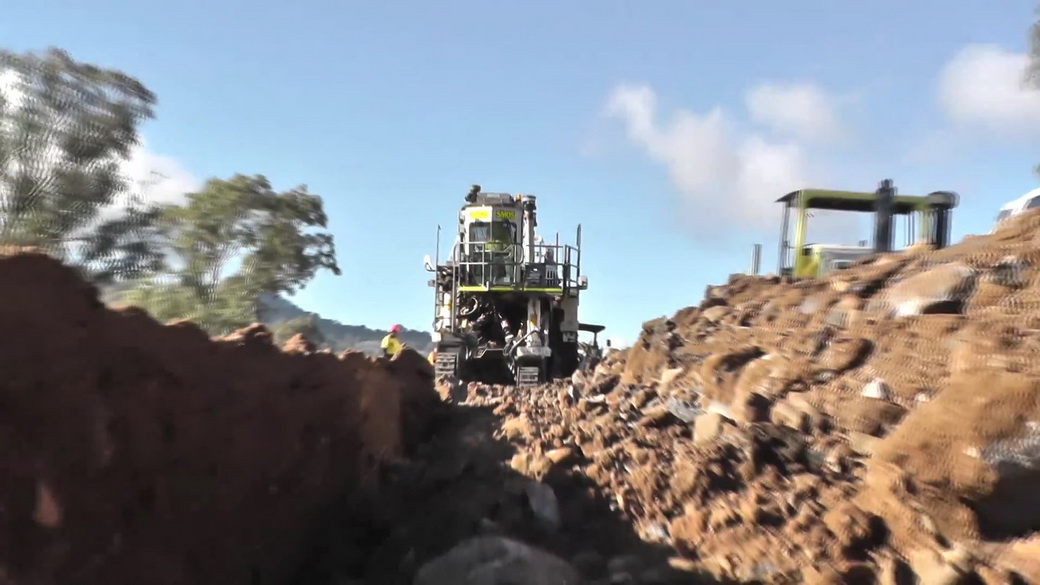

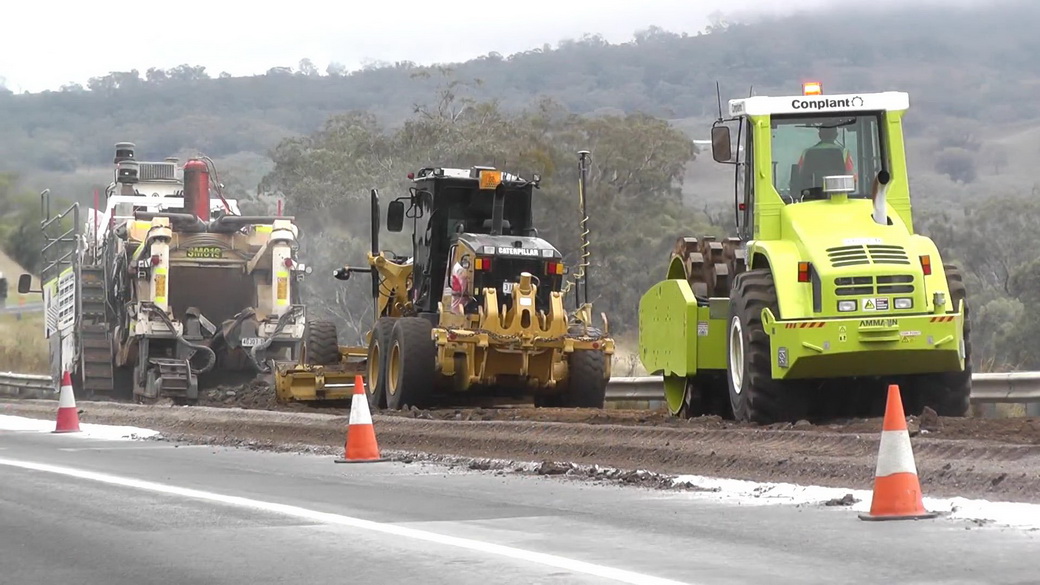

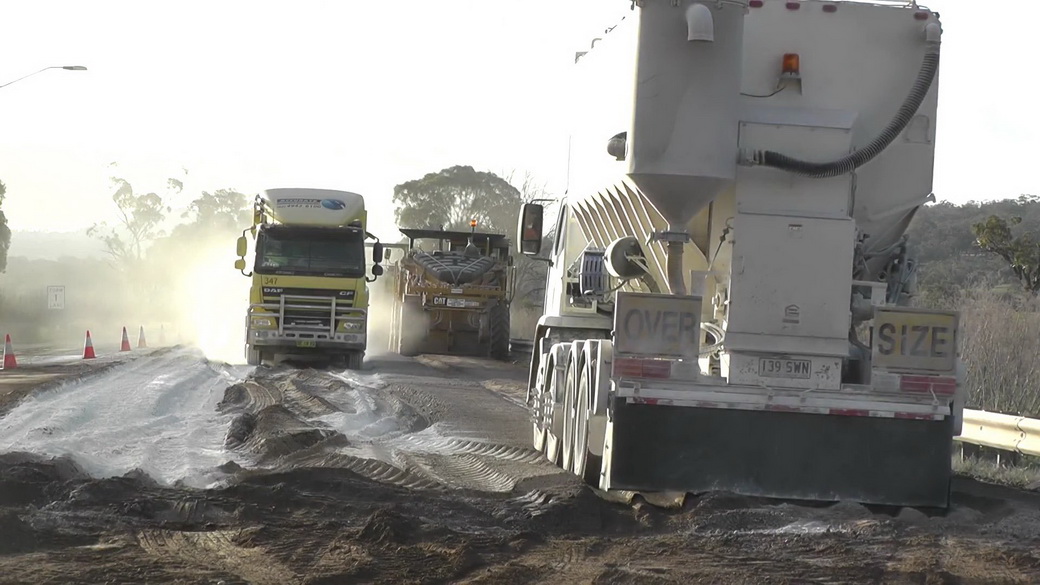

• Full service in-situ stabilisation of existing pavement material including pre-milling, spreading and incorporating additive as nominated at the respective sites, compaction and trimming to provide a heavily bound pavement of UCS > 4MPa, meeting the ride requirements of RMS R75.

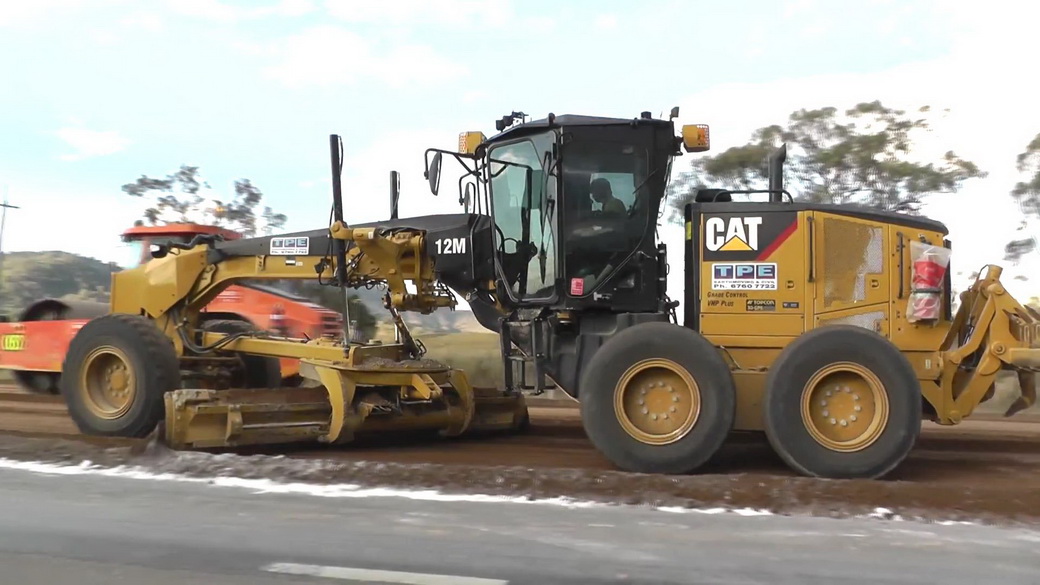

• Final trimming including saw cutting centre lines and edge lines at 120mm depth 48hours after trimming, with pavement to be returned to existing levels and cross fall.

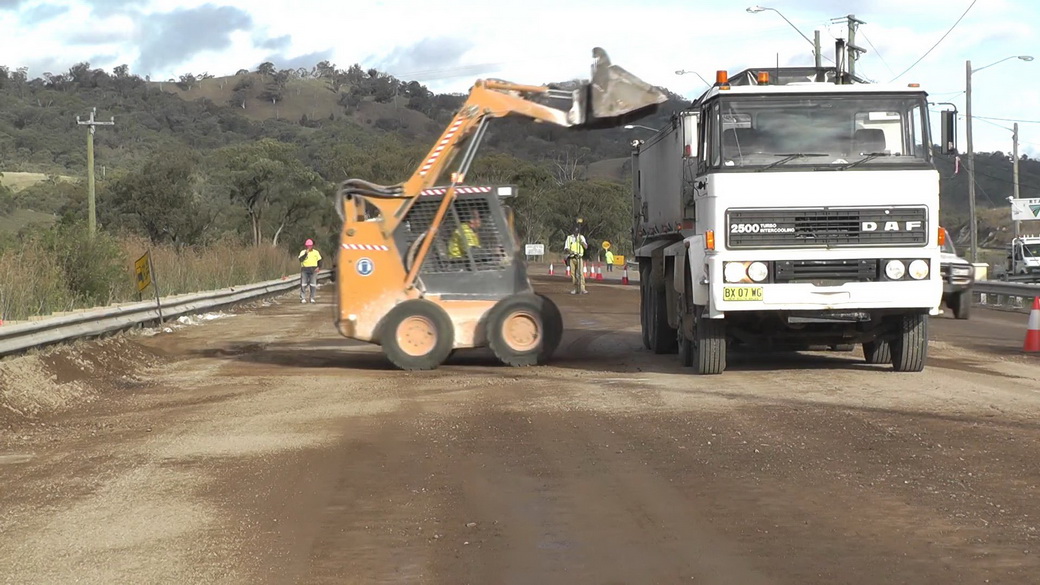

• Removal of excess spoil associated with trimming.
• Sealing of stabilised pavement in accordance with RMS R106.
• Line marking in accordance with RMS R141 and R142.
